NetFlow Storage Calculator for Home Labs

NetFlow shows what passes through your network and where it goes. If something doesn’t look right you collect some Netflow data. Seems easy enough, right? Until you get a storage drive hooked up, and after three days its filled up.

Often the problem isn’t with the data so much as it is failing to consider hidden multipliers which can cause even a modest flow rate to become a storage issue. Flow logs are treated by most home lab enthusiasts as static text file. They’re not static files. They are a dynamic record that expands based on both tags applied and fields enabled.

How to Plan Your Network Storage

To understand how it works, isolate the variables. On one side, you’ve got your flows per second coming out of each exporter (the device from which data originates). Then there’s the size of the records flowing out. Depending on if you’re using old NetFlow v5 format, or the newer, more moddern IPFIX format, this will vary widely. And finally, you have the collectors receiving the data. How much flow per second are you getting? Where are they located? Do you have a redundant site?

The page calculates answer for you. It takes all of this as input. Along with retention times and compression ratios, and spits out a real-world disk requirement. But unless you know what drives those inputs, you won’t understand the math. You shouldn’t trust the answer blindly.

After all, sampling isn’t simply a number; it’s a tradeoff. If you sample at 1:1, then you capture everything but you’ll overwhelm a low-end collector. Sample at 1:100 and you save disk space but risk missing brief connection that signals an intrusion attempt. You need to know what kind of truth you want based off your own specific use case.

Another source of confusion is compression. Many people think it saves space linearly. In fact, it’s impossible to compress flow data until it has been indexed. First the collector has to go through the records and add some metadata to them. Then it creates indexes for searching.

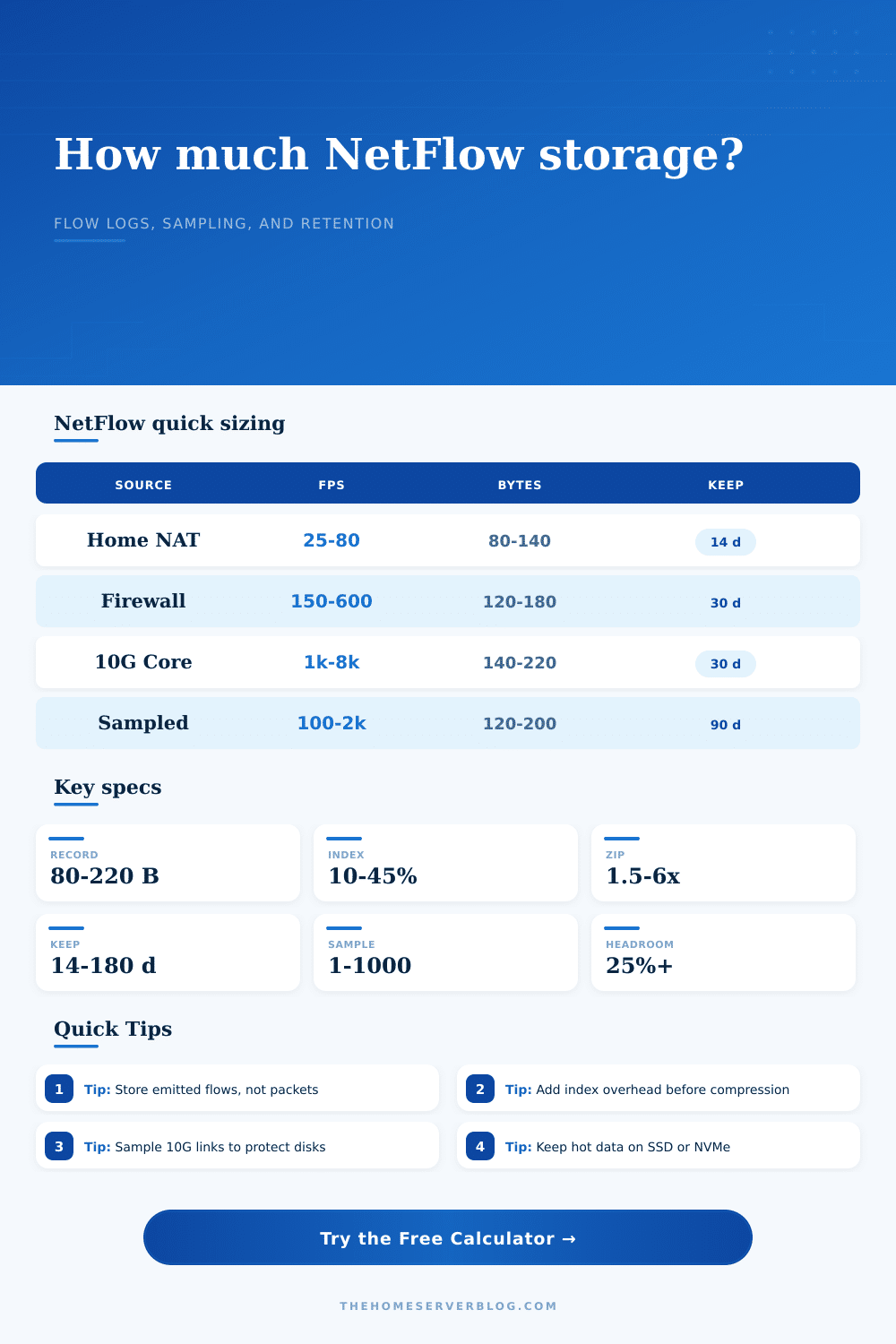

That’s called index overhead. It’s the silent killer when you plan for storage. You will likely ignore it, size your drive by raw bytes, and find yourself 30 percent short in a week. The page has a reference table laying it out. It shows how different collector profiles takes into account this metadata burden.

Light logging can be handled by a Raspberry Pi, but try to add lots of heavy indexing and it will go to a crawl. You have to balance the price of storing the data versus the speed of retrieving it. Spinning disks is terrible at random I/O, so frequent queries require fast NVMe drives. However, without rotating out old data, those same NVMe drives will run out of capacity much quicker.

How long you want to retain data also determines how much you’ll spend on hardware. To troubleshoot recent problems, thirty days of data is often good enough while still not too costly. If you need to extend that to ninety days or longer, you’ll need a multi-level solution. Hot data will remain on fast local storage so it’s immediately accessible. Cold data will get migrated to lower-cost, slower media where it can remain compressed and mostly unaccessed. Two years of searchable flow logs stored on a single consumer-grade SSD isn’t just expensive; it’s a recipe for poor performance and premature drive death.

Consumer SSDs has limited write endurance, and flow logging is a constant, relentless write operation.

And then there’s the issue of collector headroom. Don’t ever size your collector to run at maximum capacity. Flow rates can increase dramatically during a software update, or backup window. Your collector will drop packets if it’s already maxed out and dropped flows are worse than no flows. They leave holes in your timeline making forensic analysis pretty much impossible. Having 25% or more headroom guarantees that transient spikes won’t ruin your data integrity. A little bit of buffer buys you a lot of peace of mind.

How complex do you want to get? That’s where the collector profile matters. If you’re OK with relatively basic queries, then sticking something together on a Raspberry Pi like nfdump is low maintenance and will get the job done. But you don’t have many bells and whistles there (for example, you can’t really search). If you need rich search functionality, something like an Elasticsearch based stack running on a NUC requires more configuration as well as more resources.

Ultimately, the tool will help guide you towards matching your expected flow rate with a corresponding class of hardware. However, it won’t make that decision for you. Do you care about real time anomaly detection? Or are you only interested in having a historical record that you can go back and look at following an incident?

Ultimately, it’s all about setting your expectations around storage size. No unlimited everything for free, got it? Pick two: unlimited resolution or unlimited retention or zero cost.

Start with a minimal viable data set, see what your real growth looks like in a week, and add more as needed. Better to add drives when you need them rather than starting with a choking system from day one. Aim to provide sustainable visibility, not a full hard drive. Keep your headroom generous, your cold data cheap, and your hot data fast. That’ll keep the logs flowing and the lights on.
