Coax Signal Loss Calculator for dBmV Levels

June 22, 2026

Coax Signal Loss Calculator

Estimate coax attenuation, splitter loss, connector loss, amplifier gain, antenna gain, final dBmV level, and tuner margin for TV, OTA, MoCA, modem, and distribution runs.

📺Named coax and antenna presets

⚙Coax link inputs

Run length unit

Cable loss is calculated internally per 100 ft. Metric entries are converted automatically.

System profile

Coax cable type

Frequency (MHz) Use the highest channel or band that must pass reliably.

Run length (ft)

Input level before this run (dBmV) Use measured level at the antenna preamp, demarc, amp output, or source.

Antenna or source gain (dB) For OTA, enter antenna gain or leave 0 if input dBmV already includes it.

2-way splitter outputs in path

4-way splitter outputs in path

8-way splitter outputs in path

Tap, diplexer, filter, or custom loss (dB)

Connector / barrel count

Loss per connector (dB)

Amplifier or preamp gain (dB) Use negative values for pads or fixed attenuators.

Amp noise / tilt reserve (dB) Planning allowance for amp noise figure, slope, aging, or imperfect balance.

Minimum target at device (dBmV)

Maximum target at device (dBmV)

Custom cable loss at 1 GHz (dB / 100 ft) Used only when Custom coax loss is selected.

dBmV results assume 75-ohm coax systems. Manufacturer cable loss and field measurements should win over planning estimates.

Coax signal result

Total downstream loss 0.0 dB from coax and passives

Output level 0.0 dBmV at device input

Level margin 0.0 dB to target window

Equivalent RF power 0.0 dBm in 75 ohm

Run the calculator to see pass, tight, or overload status.

🗂Coax spec grid

4.8dB / 100 ft now

3.6cable loss dB

7.0splitter loss dB

0.8connector loss dB

0.0net gain dB

8.0input dBmV

-3.3output dBmV

151max ft to min

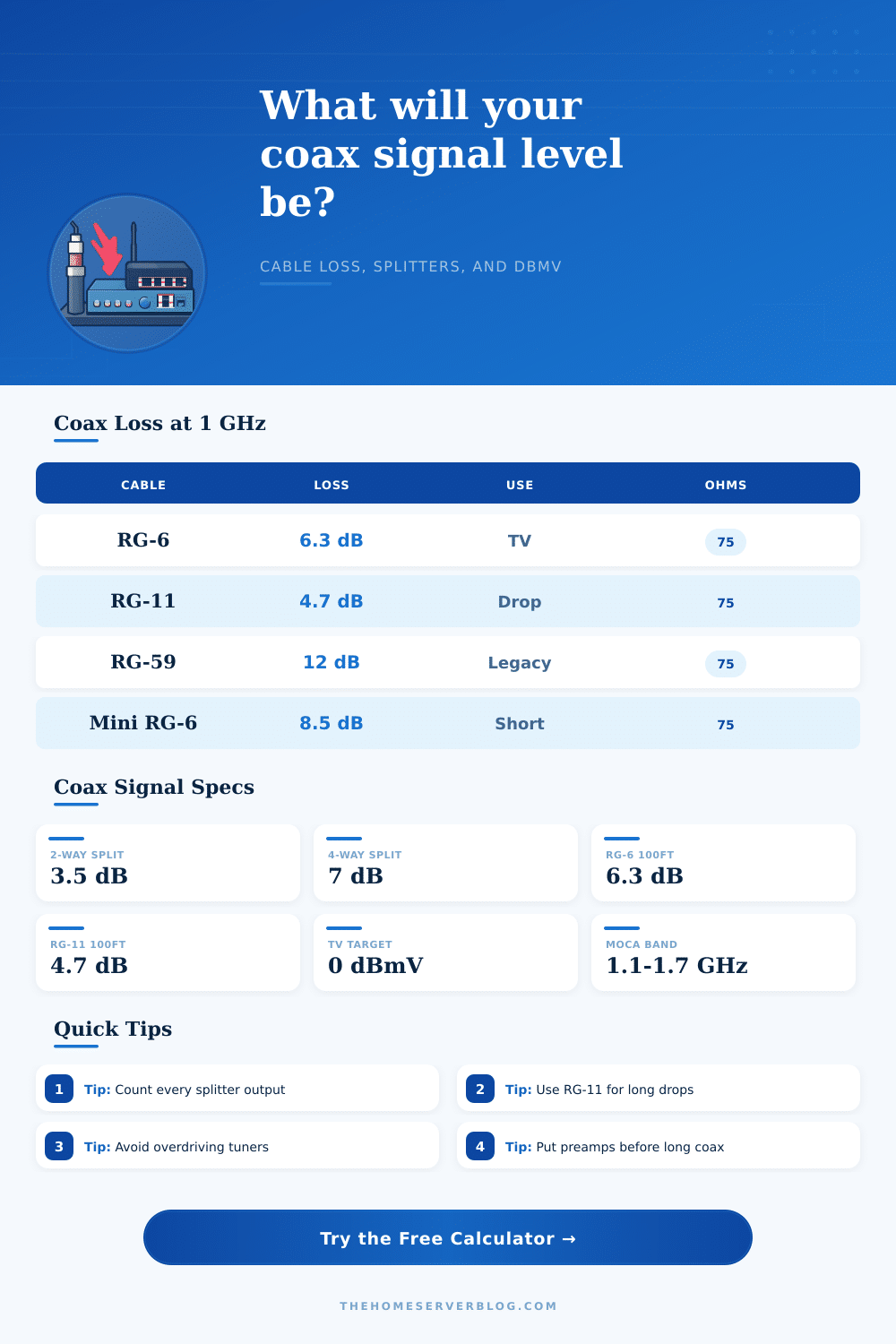

📊Coax reference tables

Coax type	Loss at 50 MHz	Loss at 1 GHz	Best use
RG-6 quad shield	1.4 dB / 100 ft	6.3 dB / 100 ft	OTA, CATV, MoCA home runs
RG-6 standard	1.5 dB / 100 ft	6.7 dB / 100 ft	General TV and modem coax
RG-6 tri-shield drop	1.35 dB / 100 ft	6.0 dB / 100 ft	Modern provider drop cable
Mini RG-6	1.9 dB / 100 ft	8.5 dB / 100 ft	Short cabinets and jumpers
RG-11	1.0 dB / 100 ft	4.7 dB / 100 ft	Long outdoor or demarc drops
RG-59	2.4 dB / 100 ft	12.0 dB / 100 ft	Legacy short video only
0.500 in CATV hardline	0.35 dB / 100 ft	2.1 dB / 100 ft	Feeder plant and long trunk runs

Passive coax item	Planning loss	Signal effect	Calculator input
F connector or barrel	0.1 to 0.5 dB	Small but cumulative	Connector count and loss
2-way splitter output	3.5 dB	About half the signal power	2-way splitter outputs
4-way splitter output	7.0 dB	About one-quarter power	4-way splitter outputs
8-way splitter output	10.5 dB	About one-eighth power	8-way splitter outputs
Diplexer or MoCA filter	0.5 to 2.0 dB	Band dependent insertion loss	Tap or custom loss
Directional tap leg	6 to 20 dB	Intentional branch reduction	Tap or custom loss

Application	Common band	Typical target at device	Planning note
OTA digital TV	54 to 608 MHz	About -15 to +15 dBmV	Noise margin matters as much as level
Cable modem downstream	108 to 1002 MHz	About -10 to +10 dBmV	Check upstream transmit too
MoCA network	1125 to 1675 MHz	Keep splitters MoCA rated	High frequency loss rises quickly
Satellite IF	950 to 2150 MHz	Receiver specific	Long runs need low-loss coax
RF modulator feed	50 to 860 MHz	Balance around other channels	Avoid overloading tuner inputs

Project preset	Starting level	Critical loss	What to verify
Attic OTA RG-6	-2 dBmV	Coax length and splitters	Real antenna level by channel
Cable modem home run	6 dBmV	Demarc to modem drop	Downstream and upstream pages
4-TV splitter feed	12 dBmV	4-way splitter output	Weakest room after wall plates
MoCA backbone	0 dBmV	High band cable loss	Splitter frequency rating
RG-11 long drop	8 dBmV	Run length to building	Ground block and weather seals

✅Planning tips

Splitter math: Count the output leg actually used by the signal path. A 4-way split normally costs about 7 dB even if only one room is connected.

Amp placement: For antenna reception, gain before the long coax run is usually more useful than gain after the cable has already reduced the signal-to-noise ratio.

Signal loss in a coaxial cable system are experienced when the signal strength decrease as the signal from the source reaches the device. The signal begin at a source such as an antenna or a tap from the cable company. From the source, the signal travel through the coaxial cable to the modem or tuner.

Every foot of coaxial cable will reduce the signal strength. Additionally, every device in the coaxial cable will reduce the signal strength again. In order to determine how strong the signal will be at the end of the coaxial cable, it is first important to understand how much signal strength will be lost during the signals travel from source to device.

Why Coaxial Cables Lose Signal

Coaxial cable systems lose signal strength because the copper and shielding within the coaxial cable reduce some of the signal to heat. The longer the coaxial cable and the higher the signal frequency, the more signal loss will occur. Coaxial cable with higher frequencies will lose more signal than coaxial cable with lower frequencies.

Coaxial cable with thicker shielding will lose less signal than coaxial cable with thinner shielding. Signal loss also occurs at splitters. Each output leg from a splitter will reduce the signal strength.

A two-way splitter will reduce the signal to half on each leg. A four-way splitter will reduce the signal to an even higher rate on each leg. Should the signal travel through multiple splitter, the signal will continue to be lost.

Signal loss can also occur at connectors in the system. Should a signal pass through multiple connectors, signal strength will be lost. Other items in the signal path such as barrels, wall plates, and signal filters can also cause signal loss.

Amplifiers and preamps will add signal strength to the signal path to overcome the signal loss. However, amplifiers will also increase the amount of noise in the signal. Should an amplifier be added into the coaxial cable after the signal loss occurs, both the signal and the noise will be increased.

The best placement for amplifiers is closer to the antenna or the demarc point. In this way, there will be a strong signal going through the coaxial cable. However, care must be taken to avoid using too much gain in the amplifier.

Using too much gain will overload the input of the modem or tuner. Most devices requires the signal to fall within a specific, narrow range of signal strength. These signal loss calculators allow users to input information about the coaxial cable, such as the type of coaxial cable, the length of the coaxial cable, the number of splitters along the coaxial cable, the gain that amplifiers will provide, and the contribution of the antenna signal.

Based off these various inputs, the calculator will provide the signal strength that will arrive at the device. Reference tables list the signal loss rates for various type of coaxial cable. Additionally, these tables also indicate the signal loss caused by splitters and coaxial connectors.

These signal loss rates are based upon the specifications of the manufacturers of these coaxial cable components. Real signal loss may be different than the signal loss that is calculated. Signal loss can be affected by various real-world conditions.

Coaxial cable signal loss is affected by temperature changes. Signal loss can also be caused by the age of the coaxial connectors. Oxidation can form on the metal of the coaxial connectors and add resistance to the signal path.

Water can enter the coaxial connections if the connections are old and weather-exposed. The water can degrade the signal. Coaxial cable can experience invisible damage if it is bent sharply or pulled too tightly.

The installer of the coaxial cable will compensate for any signal loss caused by these factors. Therefore, the installer should measure the signal strength at the device after installation. There are various types of coaxial cable.

RG-6 quad shield coaxial cable is the most common type. It is a balance between thickness and flexibility. RG-11 coaxial cable is more expensive and more stiffly.

However, because RG-11 has less signal loss than RG-6 coaxial cable, it is used for coaxial cable runs longer than 200 feet. Mini RG-6 coaxial cable is used in tight spaces. However, Mini RG-6 has higher signal loss than RG-6 coaxial cable.

RG-59 coaxial cable is an older type of coaxial cable. Because of the high signal loss of this type of coaxial cable, it is not used for moddern applications. The frequencies that the coaxial cable will carry will also affect signal loss.

A coaxial cable that loses little signal at 600 MHz may lose too much signal at 1 GHz or 1.6 GHz. Because newer modems and MoCA adapters uses higher frequencies, it is important to plan for signal loss at these frequencies. The signal loss calculator can account for the highest frequency that the devices along the coaxial cable path will use.

Should such a high frequency not be planned for, the coaxial cable run may work for television but will fail to provide sufficient signal to a cable modem. In addition to the frequency at which the coaxial cable will operate, signal margins must also be considered. Signal loss calculations typically show the signal level that should arrive at the device.

However, it is typical to plan for a signal that is above the minimum target signal. Environmental conditions such as weather can change the signal loss in the coaxial cable system over time. Additionally, some signal loss can result from the aging of the coaxial connectors.

If the signal is too high, it can also overload the input of the device. Therefore, it is also important to avoid signal loss to too much signal strength. Understanding where the signal losses occur and how they impact the signal strength will allow a technician to determine how additional signal losses will impact the signal strength that reaches the device.

For instance, if additional splitters are to be added to a system, understanding the signal losses caused by splitters will allow for an estimation of the signal that will reach the device. The same is true of any additional length of coaxial cable or additional device. The technician should of checked the connections.
