Fiber Connector Loss Calculator for Links

Connectors kill most home lab fiber runs. I have pulled perfect singlemode fiber through my 100m long garage and had no luck getting it to work. Why? There were dust particle on the small ceramic ferrule at one end. Light behaves different than you and me. One particle of lint or one microscopic scratch will scatter photons and prevent them from reaching your receiver. On a power meter that’s high loss. Looks like bad hardware. But mostly it’s just dirt on the connector ends.

And there’s the rub: Understanding the link budget ends the guesswork. How much power does your transceiver start out with? And how much has been lost by the time it gets through? Define the path and the calculator above will run the numbers for you.

How to Fix Your Fiber Link Issues

It runs from end to end. It includes length of the fiber, the type, and all the points along the way where it touches a connector. Most folks greatly underestimate the number of actual mating pair they have. Patch cable connects to a switch and a panel? Two connections. Two ends coming together in an adapter. So you count ’em as pairs because that’s where the loss occurs. Double your connectors if you have a patch panel in between. That’s what folks gets wrong. They think in terms of cables instead of interfaces.

Cable attenuation vs. Connector loss occurs. Connector loss Why does this tool split them apart? Because glass is very good at transporting light over short distances. For those short runs, the fiber itself is practically irrelevant. It’s all about what happens at the edges: every time you move light from one cable to another, it gets killed by misalignment and reflection. This is especially true for singlemode because the core is tiny. Multimode is more tolerant, so you see multimode used for shorter hops (like offices). Even then, too much patching will ruin signal.

The calculator includes an allowance for imperfection because nobody ever gets everything right in the field. New patches may be clean as a whistle, but six months of hot-swapping SFP modules messes with that. Oil from our fingertips accumulates. Dust also collects. The allowance ensures your estimate isn’t theoretical but realistically achievable.

Connectors, Connectors are interfaces where loss happens when light exits one cable and enters another through mating pairs. That means reflection back into the other piece of glass, so the calculator shows some loss. A splice joins two pieces of glass together permanently. When done right, they is almost completely invisible to the light unless you are really looking. Since there’s no air gap and nothing reflecting, the calculator applies a lower loss figure for splices than for connectors.

Good design usually includes minimizing connectors, since you’re usually trying to avoid splicing in the first place. Fewer moving parts mean fewer places to fail. Mechanical splices also work, but they cause more loss than fusion. Toggle that option if you’re repairing old runs instead of building new ones, and tool will help you do that too.

But the other metric is budget. How much will it take? Each optic has its limit and can takes only so much loss before it drops out of sight, below the noise floor. That’s what the calculator measures: Your total loss versus the limit. You’re down to one decibel? You’ve got wiggle room, enough to age, change temperatures, use a slightly poorer-than-new connector, and still be fine. You’re at zero? Flap-flap-flap. A single speck of dust is all it takes, and the link is gone. Better to go more rather then less on this margin-chase game of intermittent error.

And don’t skip over the engineering margin setting. This is a buffer in percentage to account for unknowns. Panels will be crowded. Connectors will be reused. Cables will be bent. Twenty percent or even ten percent can make up for the wear and tear after install. It’s insurance against reality.

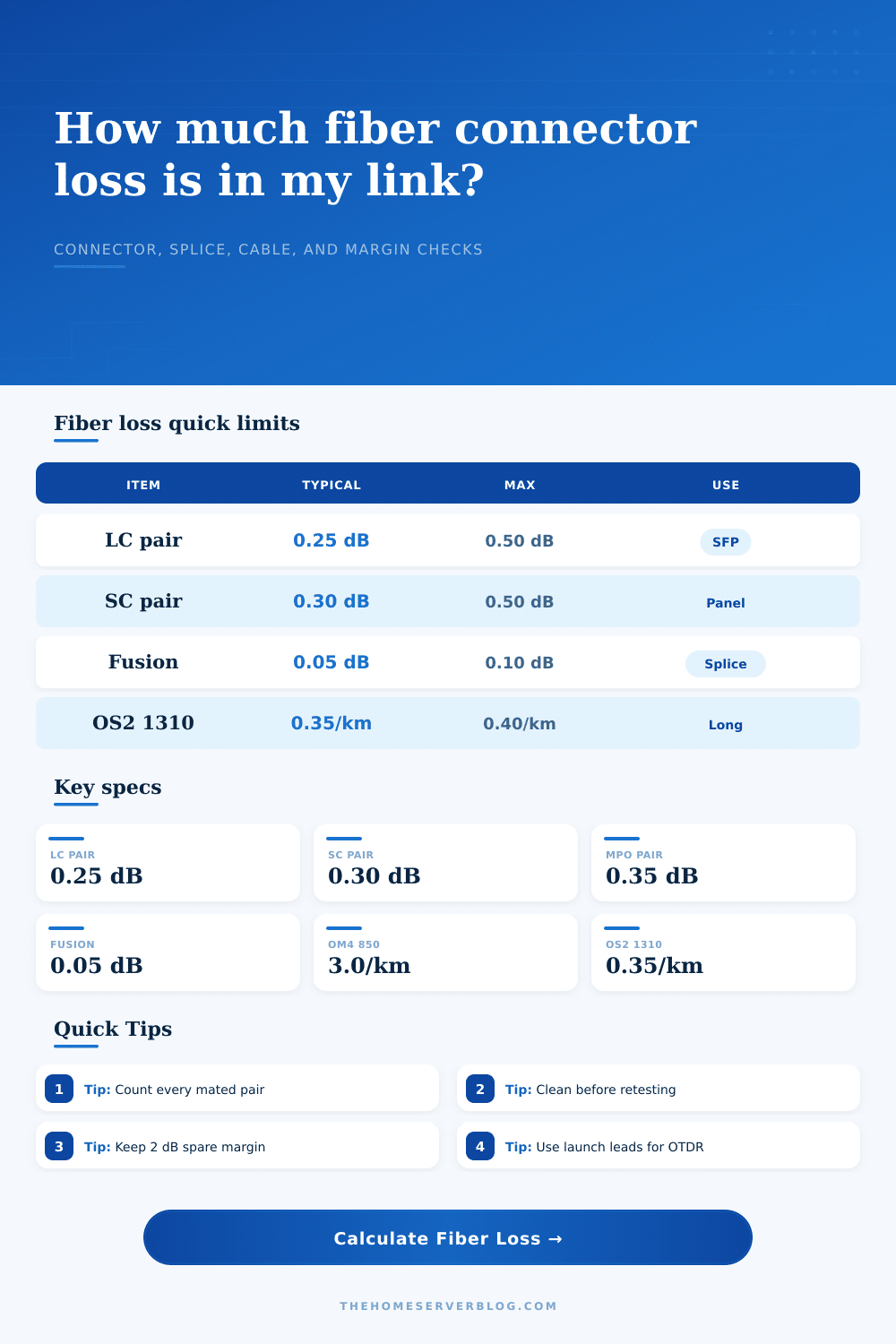

The page has a reference table showing some standard values by common connector type. These are based off industry standards, not guesswork. Use these as your starting point. Look at the breakdown when you put your numbers into it. Are you seeing connector loss dominate? Make the path simpler: get rid of a patch panel or go direct with a patch cable. Is it cable attenuation? You’re just too far away for that class of optic. Go to a longer reach transceiver or switch to singlemode. It’s typically one or the other.

Fibre is simple. Light goes in, light comes out. If it doesn’t, something’s blocking the way. Half of these problems get solved with cleaning. It’s a penny for a single-click cleaner; wasting an hour testing with a dirty reference cord is wasted hours. Look at the endface before you plug it in. It’s a little ritual that pays off in steadiness. Actually, you should of used more cleaners. Modern setup might feel luxurios but dirt dissapears slowly.
