IP Header Checksum Calculator for IPv4 Packets

Checksums seem like such a tedious piece of the protocol that you can reasonably assume they’re taken care of behind the scenes by today’s processors without issue. This changes when you use Wireshark on a flaky link between two home router and notice invalid IP headers being flagged. This isn’t because of anything wrong with payload in the packet. In most cases, it’s because of checksum itself in the packet’s header.

The packets breaks as they pass through some kind of hardware that has decided to offload calculating the packet for us into the network interface card. These cards computes the checksum and write it to the packet after it leaves the OS. What your packet analyzer captures is not what’s on the wire when you capture it. You just happen to have a good packet by the time it makes its way onto the wire, but your capture show an incorrect or empty checksum value.

Why Packets Look Broken in Wireshark

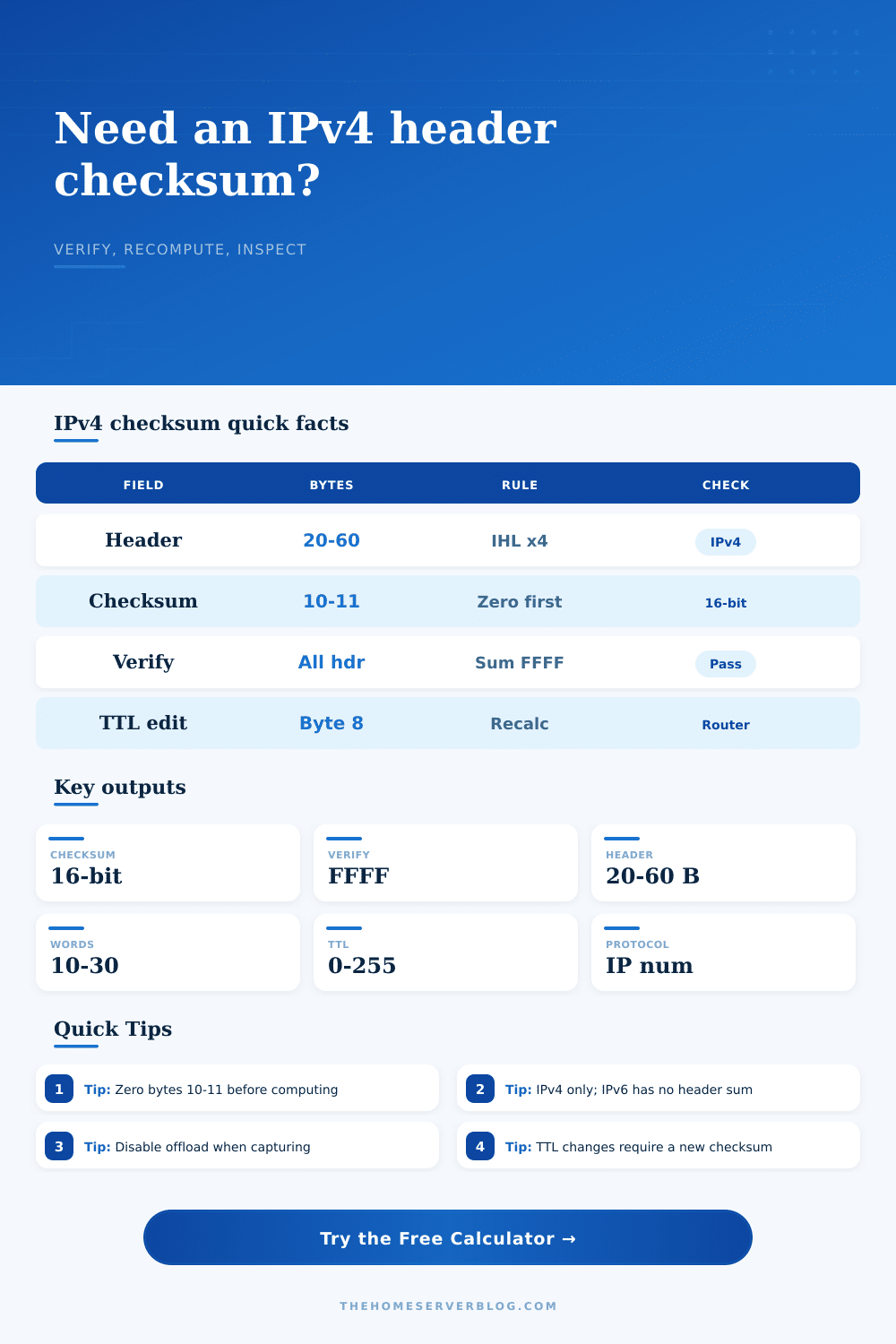

Start your troubleshooting here. The math for IPv4 header checksums is deceptively simple: instead of plain old binary addition, it uses what’s called one’s complement addition. You break up the header into 16-bit words, add ’em all up, and if there are any overflows, you just toss those bits back in the answer. It is a nice little trick to catch mistakes without having to do complex stuff with division and such, but this also make each and every byte in the header matter.

Routers has to decrement the Time To Live field when they forward a packet. Changing a single byte breaks the checksum so the router has to recompute it before forwarding the packet along. The failure to recalculate causes next hop to drop the packet outright. It is a small detail. However, it explains why things like NAT translation errors or broken fragmentation can look like mysterious connectivity drops different than obvious configuration errors.

A specialized calculator will help demonstrate this in action (without getting bogged down in hexadecimal math). Paste in your raw hex dump from Wireshark or tcpdump and it will parse through the bytes on display. Choose between validating an existing checksum against given values or recomputing one from scratch to see what’s different.

The latter option will let you tell whether the packet has been corrupted en route (i.e., there was a problem) or if there’s just an artifact in your capture. Simulate being either side by setting the checksum field to zeroes and then recomputing it to see how the sender would of sent it. Or keep the value intact and check it to see how a receiver verifies it.

That’s where we get into the duality of these packets: They may appear fine but they won’t validate because the sum of everything… Including the checksum itself, must total all ones. Otherwise something happened along the way. There’s also yet another wrinkle: header options. Many calculators don’t account for these, which extend the length of a standard IPv4 header from 20 bytes. If the “Internet Header Length” field doesn’t match this expected length, actual header length is different. You must account for all of those extra option bytes when calculating the checksum.

This should sound familiar because it’s exactly how routers reject a malformed packet. The IHL value fails to match what they’ve actually been fed, which means the checksum calculation will also be incorrect. So before taking the answer at face value, make sure you check the IHL nibble in first byte of your hexdump.

This calculator has that covered for you; it filters out any delimiter noise and zeroes in on the real deal, the sixteen-bit words that count. No more fretting over byte ordering or endianness alignment here, just confirm whether it’s the TTL value or the protocol field that’s failing.

For example, when capturing packets on a Windows machine or Linux host, you have to disable checksum offloading if you want to actually see what the software stack put into the wire. Otherwise you’re chasing ghosts: you compare your captured data to expectations that was never in memory. The equipment comparison section here emphasizes those subtleties: you can get a different view of the same packet from different capture points. In some cases, it will be perfect at the destination and broken at the source, not because anything is wrong with either end, but just because the hardware corrected it on its way out of the building.

Seeing that pattern saves you hours of fruitless debugging. Instead of looking at the endpoints, you trace where the header was last changed. You start to think about the path instead of the endpoints themselves.

And finally, the checksum is a promise that the header survived its journey intact. That’s all; it’s a way to verify that those three little fields, address, TTL, and protocol, arrived as intended. Once you know how routers keep that promise updated from hop to hop, you begin to comprehend why there’s so much noise in your packets. Those bad headers you’re seeing aren’t necessarily bad at all; they’re just the hardware completing its task, reminding us once again that the network layer isn’t static but changing.

Maintaining this mindset makes it easier to have faith in your tools, because even though the capture may be imperfect, we can rest assured that the math behind it holds up.
