Server Heat Output Calculator for Home Labs

There are two things you have to know: 1) computers create heat, and 2) heat obeys laws of thermodynamics. When devices draw power from the wall, each watt of electricity is converted to heat. Because even one or two server in an enclosed area can produce dangerous temperatures very fast.

To calculate how much heat you’re dealing with, simply enter number of devices and their approximate power usage into calculator here. It do all the unit conversion and coefficient guessing for you. I see far too many people base everything based off the power supply, as if a 700 watt power supply mean it will consume 700 watts of power. A database server may only use two hundred watts when performing its job, yet you’ve sized your cooling for worst case scenario, which never realy happens.

How to Calculate Your Server Heat and Cooling Needs

You can’t just say “oh I have X wattage” because that’s what you need to idle with. You want to know how much power does my system uses when doing backup/whatever? Get yourself a plug strip meter, crank up your normal workload, then take note of what the watts are. That’s your benchmark.

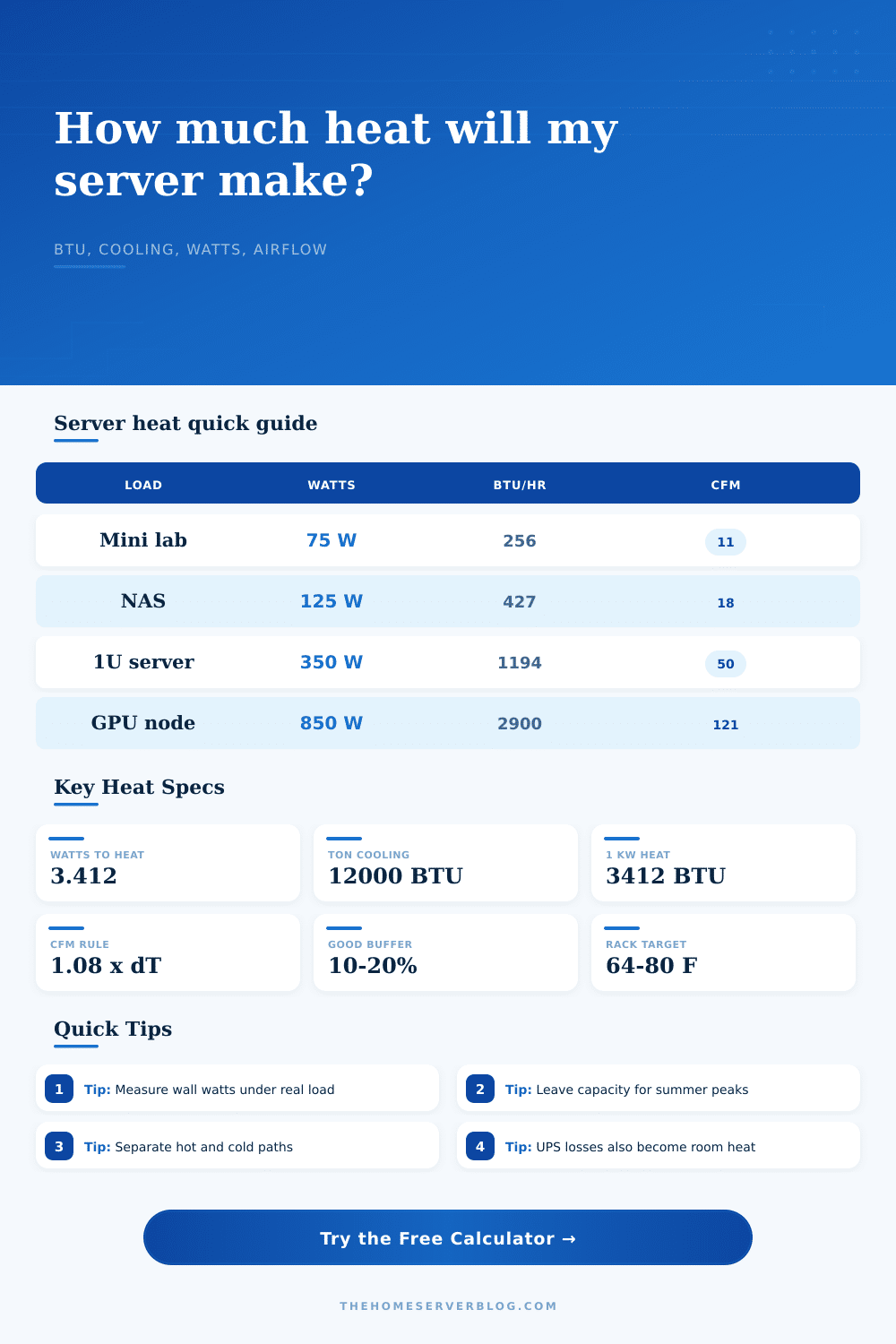

From there, the math is simple. Multiply your base by 3.412. (British Thermal Units, per hour.) This is measured in British Thermal Units per hour. When you realize that every ton of air conditioning capacity equal twelve thousand BTU per hour, that figure comes into focus. If a single desktop server pulls a hundred watts, it’s creating more than three-hundred-forty BTU per hour. Add three servers, a NAS, and a switch, and suddenly you’ve exceed the load of a typical window unit.

As you add more gear, the numbers increases. And while the tool prompts for a peak load multiplier, yes, servers don’t consume power constantly. Updates, backups, video encoding all spike the energy draw. These spikes matter; if you cool down at wrong time, you’ll find yourself overheated. To account for this variability (and also inefficiency in space), you have safety overhead set.

Why? If you’re in a tiny network closet that warms quicker than a garage, it’s because there isn’t enough air to start with. Cool air needs to flow in, pick up heat, then leave. Think of it like pathway instead of a fan alone. Hot air rises; if blocked, hot air remains. Cooling is also about airflow. It doesn’t matter how big an air conditioner you get; if the warm air recycles back into your server intakes, it won’t be cool.

The calculator find the minimum cubic feet per minute needed for your desired temperature rise. The less you allow the temperature to rise, the greater need for airflow. For data centers, they employ hot/cold aisles so that intake is separated from the exhaust. In a home lab, you might not be able to do this but at least you can control it.

Make sure you keep the rear of your rack open and install blanking panels to prevent warm air from circulating back around. Also don’t measure average room temperature, measure what hits the server fans. If it’s hot when it reach the server fans, the server will throttle back or shut off.

Other extra gear like access points, switches and uninterruptable power supplies needs consideration too. They are inefficient and produce waste heat. While individually those losses might be tiny; the loss of a thirty watt UPS for example, they accumulates over time and add to thermal load. The calculator has fields for those extras. Because they does add up over time. Over 24 hours, a little bit starts to become something meaningful. And then it’s part of that overall energy you should of removed from your space each day.

Cooling isn’t about getting the biggest unit out there. It’s about fitting right amount of cooling to real world demand. Get some measurement data, add a buffer for the summer and make sure you get enough airflow in the space. View heat as design constraint instead of an afterthought. Your lab will hum quietly and consistently if you do so. In fact, you’ll eliminate overheating altogether.
