Multipath Bandwidth Calculator

Because of this, you purchased two gigabit internet connections for your home network. Large files weren’t downloading quick enough and video calls kept buffering. The marketing materials told you that it was as easy as math: two paths means twice the speed. You started a single backup job and watched it crawl along at one gigabit…was the math off? Was the hardware broken? Nope. Your intuitions about how to combine bandwidth is deceiving. Multipath networking doesn’t work like additional lanes in a highway. Bandwidths don’t just add up. Traffic gets distributed according to physical limitations, policy, and hashes that can frequentlly be unexpected compared to simply adding things up.

After you’ve specified your own topology, the calculator (above) do all of the tricky math for you, which means no more guessing at whether you’ll see better results or simply pay extra for redundant capacity. The takeaway is that aggregate bandwidth are a statistical probability rather than a constant. In other words, if traffic traverses multiple links through LACP or ECMP, then the network hashes the source and destination addresses in order to decide where it sends each packet.

Why Two Internet Connections Do Not Mean Double Speed

Traffic distribution tend to balance out quite nicely when there is lots of small connection; think app updates and web browsing. The more simultaneous flows you have, the closer your actual throughput get to that theoretical total. Think of it like a numbers game. Volume helps. But for big single transfers, the picture change. And this is the case in which the elephant flows into play the most. Typicaly a large video render session or backup stream will pin itself to one hash bucket. So even if there are a bunch of other links with extra space, it can’t use them. You end up with one line screaming away at max capacity and three others sitting idle because the application is stubbornly locked down on one path. That’s why folks think their multipath set-up doesn’t work as well, based off a bottleneck. The tool shows you what the aggregate potential is vs. The single-flow limit and makes it clearer: more paths don’t always mean quicker transfers from the big transfer point of view.

Plan for failure. Most failure scenarios aren’t mentioned on the marketing brochure, but they’re absolutely necessary for building resilience. What if one of those links goes down? Will your other link take up the slack immediately and not fail because of congestion? Simulate failures with the calculator to get a picture of how much usable bandwidth you’ll actualy have during a failure. Is it enough to maintain QoS reserves so you can squeeze bulk traffic into smaller buckets while keeping voice/video clear? If you don’t reserve capacity for apps with strict latency requirements, one broken cable can make your shiny new network a bottlenecked mess. Everything crawls along at once in this situation.

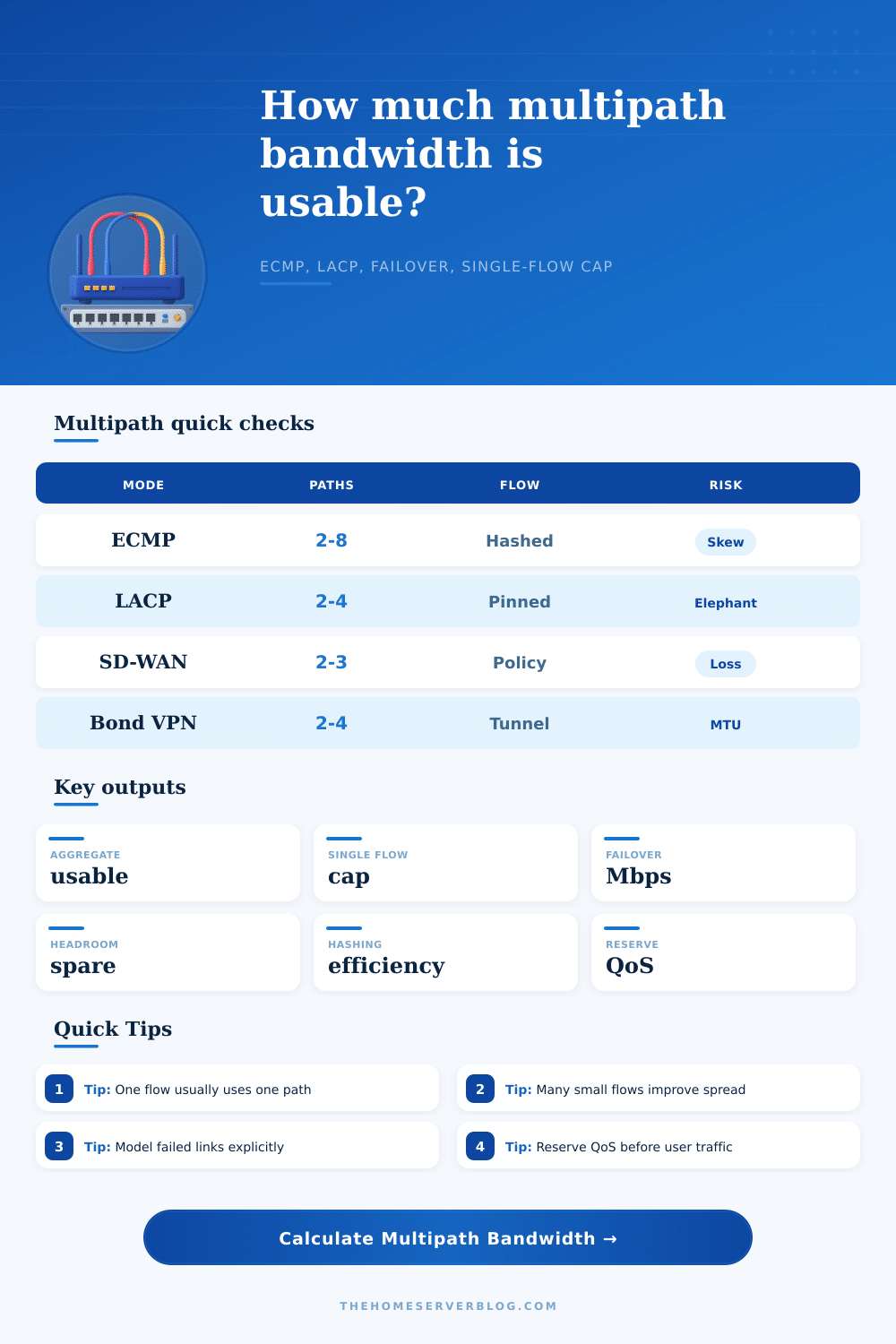

A second factor eating away at your bandwidth silently but constantly is hash efficiency. While all the hashing algorithms has their imperfections, a real network will be imbalanced for reasons such as uneven routes, sticky sessions, etc. Some buckets become full before others even though both sides have the same links. This results in uneven usage of the links. The page shows a reference table comparing various modes, such as traditional LACP bundles versus SD-WAN policy steering. Each mode has its own tradeoffs between spreading traffic evenly and reacting to changes quick. Knowing the details allows you to determine whether your existing HW can really provide what you think it should of or not. Or whether you’re banging your head against the wall because you hit the inherent limit of protocols.

So in the end, multi-path bandwidth isn’t necessarily about how much it can move but how well it can deal with both failure and distribution. How many little flows do I have that are going to fill my buckets evenly? Do I have enough extra space to account for dropped links? Do I have enough reserve capacity to ensure that the apps I care most about continue to be responsive even as stuff goes wrong? As long as you remember that the whole is not always greater than the sum of its parts, it will work out just fine. But mainly it’s just knowing what you’re measuring vs. It is about what you think you are getting.
