Speaker Cable Length Calculator
Estimate safe speaker wire run length from impedance, AWG resistance, copper quality, wattage, acceptable power loss, and damping factor.
| Gauge | Ohms / 1000 ft | Ohms / 100 m | Typical speaker use |
|---|---|---|---|
| 20 AWG | 10.15 | 3.33 | Very short desktop leads |
| 18 AWG | 6.385 | 2.095 | Short surrounds or satellites |
| 16 AWG | 4.016 | 1.317 | Normal room-length runs |
| 14 AWG | 2.525 | 0.828 | Home theater fronts and ceilings |
| 12 AWG | 1.588 | 0.521 | Long runs or low impedance loads |
| 10 AWG | 0.999 | 0.328 | Very long high-power channels |

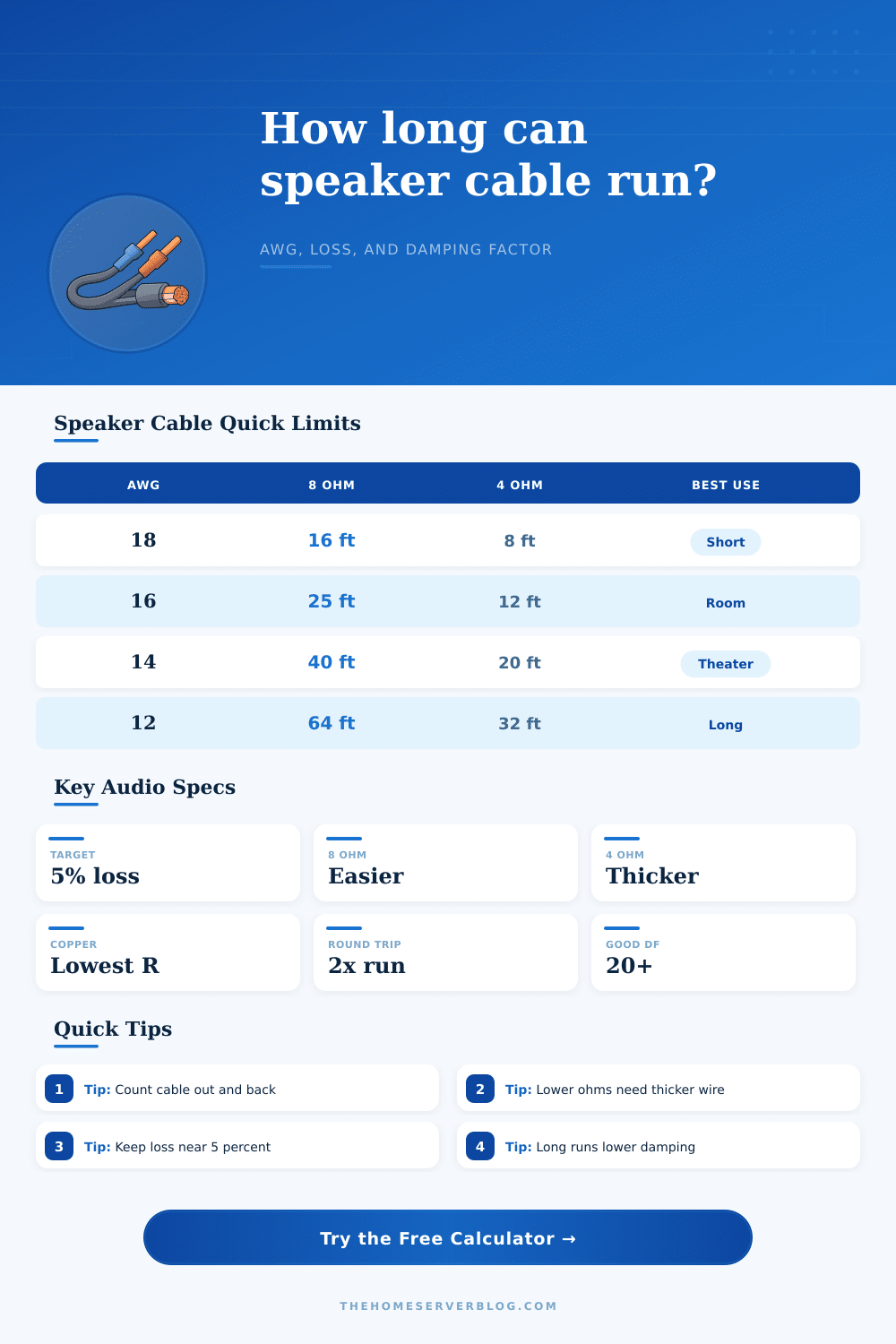

| Gauge | 8 ohm speaker | 6 ohm speaker | 4 ohm speaker |
|---|---|---|---|
| 18 AWG | 16 ft | 12 ft | 8 ft |
| 16 AWG | 25 ft | 19 ft | 12 ft |
| 14 AWG | 40 ft | 30 ft | 20 ft |
| 12 AWG | 64 ft | 48 ft | 32 ft |
| 10 AWG | 101 ft | 76 ft | 50 ft |
| Target | Good range | Watch when | Why it matters |
|---|---|---|---|
| Power loss | 3 to 5 percent | Above 8 percent | Reduces speaker output |
| Cable resistance | Under 5 percent of load | 4 ohm speakers | Keeps frequency balance stable |
| Damping factor | 20 or higher | Long woofer runs | Helps amplifier control motion |
| Round trip | 2 times one-way | Hidden cable paths | Both conductors add resistance |
| Profile | Impedance | Typical AWG | Distance range |
|---|---|---|---|
| Nearfield stereo | 8 ohm | 18 to 16 AWG | 3 to 12 ft |
| Living room fronts | 6 to 8 ohm | 16 to 14 AWG | 10 to 35 ft |
| Ceiling surrounds | 8 ohm | 14 AWG | 25 to 55 ft |
| Low-ohm towers | 4 ohm | 12 AWG | 15 to 40 ft |
A speaker cables length calculator is an tool that can calculate the specifications for a speaker cable. A speaker cable length calculator use several specific variables to determine how much signal will reach the speaker. These variables include the distance of the speaker cables, the impedance of the speaker, the power of an amplifier, and the acceptable power loss of the system.
Using a speaker cable length calculator is helpfull because it can show you the electrical performance of your speaker cable prior to installation. Although distance is one of the most important variable in determining the appropriate specifications for a speaker cable, it isnt the only important variable. The resistance of the conductors of the speaker cable will increase with the length of the speaker cable.
How to Use a Speaker Cable Length Calculator
If the distance between the amplifier and speaker are thirty feet, the speaker cable will need to contain two conductor that are sixty feet in length. Additionally, if the speaker have a low impedance, it will draw more current from the amplifier. The more higher the current drawn by the speaker, the higher the voltage drop across the speaker cable.
This can make it necessary to use a thicker gauge of wire, such as twelve gauge wire, rather than a thinner gauge of wire, such as fourteen gauge wire. The material of the speaker cable will also affect it’s resistance. If you use oxygen free copper in the speaker cable, the resistance will be low.
However, if you use copper clad aluminum, the resistance will increase by approximately fifty percent. Using copper clad aluminum will increase the resistance of the speaker cable. This additional resistance will lead to a loss of control over the bass of the speaker, as well as a loss of the dynamic range of the speakers.
A speaker cable length calculator can help to calculate the resistance of the speaker cable given a specific material. Another important variable that a speaker cable length calculator will calculate is the power loss of the system. The power loss of a speaker cable should be kept under five percents.
If a speaker cable system loses more than five percent of the power of the amplifier, the amplifier have to work harder to provide power to the speaker. Additionally, the resistance of the speaker cable affects the damping factor of a speaker system. The damping factor of a speaker system describe the control that the amplifier has over the movement of the cone of the woofer.
If the resistance of the speaker cable is high, the damping factor will be low. A low damping factor will result in bass sounds that are less precisely than desired for a high-quality audio system. When calculating the length of the speaker cable that will be needed for installation, it is important to account for any additional length that may be required.
For example, there may be corners in the area where the speaker cable must travel that will require additional length to route the speaker cable around those corner. Similarly, the speaker cable may need to travel behind the equipment to which it is to be connect. An additional length of speaker cable may be needed to allow for the installation of service loops behind the equipment.
A speaker cable length calculator can help to account for any additional length required for installation. If the speaker cable will be installed outdoors, then it is also important to consider how the temperature swings and UV exposure in that area may require the use of a different type of speaker cable jacket. One of the most common mistake with speaker cable is to ignore the effect that the power of the amplifier has on the resistance of the speaker cable.
Even with a powerful amplifier, high level of current will be dropped across the resistance of the speaker cable. Another of the most common mistake is to ignore the fact that the speaker cable is a round trip circuit. The resistance of the speaker cable must be calculated based off double the distance from the amplifier to the speaker.
Speakers with four ohms of impedance present more of a challenge in the speaker cable system than speakers with eight ohms of impedance. The goal of using a speaker cable length calculator is to ensure that the signal from the amplifier reach the speaker without alteration. To accomplish this goal, the resistance of the speaker cable should be low.
Low resistance will result in minimal loss of power of the amplifier and a damping factor that can effectively control the movement of the cone of the woofer. Additionally, because it is not easy to change a speaker cable once it is installed into the wall or the floor of the structure where the speakers are to be install, it is important to use a speaker cable length calculator to calculate the requirement for the system prior to beginning installation of the speaker cable. You should of used a calculator to avoid mistakes.
