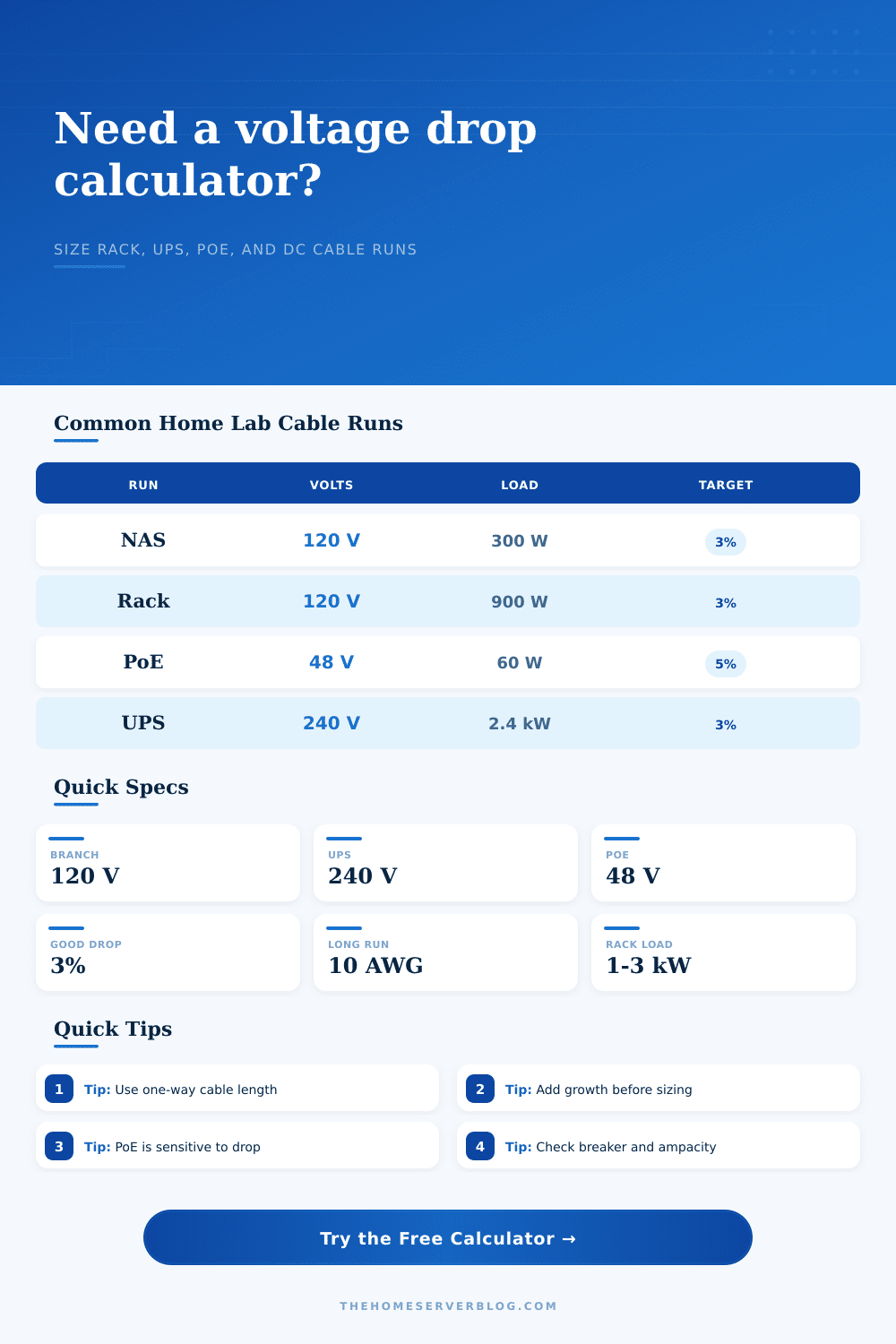

Voltage Drop Calculator for Home Servers

August 15, 2026

Voltage Drop Calculator

Estimate current, conductor voltage loss, delivered voltage, and sizing headroom for home server racks, UPS circuits, PoE runs, and low-voltage DC feeds.

⚡Power and Cable Presets

🔧Voltage Drop Inputs

Use line-to-line volts for three-phase.
Use real watts, not breaker rating.
Server PSUs often run near 0.90 to 0.99.
Enter panel-to-rack distance, not round trip.
This calculator estimates conductor voltage loss only. Final circuit sizing still depends on breaker rating, insulation temperature, local electrical code, termination ratings, and continuous-load rules.

Voltage Drop Results

Design Current 0.00 amps after overhead
Voltage Drop 0.00 volts lost in cable
Drop Percentage 0.00% of source voltage
Delivered Voltage 0.00 estimated at equipment
Enter values and calculate.

🖥Equipment and Cable Spec Grid

120 V Typical NAS or mini rack branch
240 V Lower current rack PDU feed
48 V PoE and DC battery bus planning
3% Common branch-circuit design target
23 AWG Common Cat6 conductor size
12 AWG Common 20 amp copper branch wire
10 AWG Useful for longer 120 V server runs
208 V Small three-phase lab or shared PDU

📊Reference Tables

Conductor Copper Ohms / 1000 ft Typical Home Lab Use Planning Note
24 AWG Cat5e pair group 8.42 PoE devices Voltage drop rises fast near 100 m.
23 AWG Cat6 pair group 6.69 PoE access points Slightly better for higher PoE loads.
14 AWG copper 2.525 15 amp branch Shorter runs with modest rack load.
12 AWG copper 1.588 20 amp branch Common home server circuit choice.
10 AWG copper 0.999 Long branch Helps keep 120 V rack feeds tight.
6 AWG copper 0.395 Rack feeder Used where current and distance both climb.
Design Target Where It Fits Example Voltage Loss Practical Meaning
2% DC shelves, PoE edge cases 2.4 V on 120 V Conservative for sensitive electronics.
3% Branch circuit planning 3.6 V on 120 V Common target for receptacle circuits.
5% Feeder plus branch total 6.0 V on 120 V Often treated as an upper planning limit.
8% Temporary lab or tolerant DC 3.8 V on 48 V May work, but leaves less equipment margin.
Power Scenario Typical Voltage Common Load Range Voltage Drop Watch Point
Home NAS and modem shelf 120 V AC 100 to 400 W Usually length is the main variable.
Half rack with UPS 120 V AC 600 to 1500 W Check current after load growth.
Higher-density rack PDU 240 V AC 1500 to 3000 W Higher voltage lowers current for same watts.
PoE switch to access point 48 V DC 10 to 90 W Small voltage drops are a larger percentage.
DC battery or telecom bus 48 V DC 300 to 2000 W Cable size matters quickly at high current.
Common Project Size Starting Input Likely Cable Choice Secondary Check
Small closet lab 300 W, 30 ft 14 or 12 AWG copper Confirm receptacle circuit rating.
10-device PoE setup 180 W, 200 ft Cat6 23 AWG copper Check switch PoE budget too.
Full home rack 1800 W, 80 ft 10 AWG copper or 240 V Estimate heat output and UPS runtime.
DC backup cabinet 1000 W, 20 ft 6 AWG copper Fuse both current and cable rating.

💡Planning Tips

Use one-way distance: The calculator applies the return-path multiplier for two-wire AC, DC, and PoE-style circuits. Enter the physical panel-to-rack distance, not the out-and-back cable length.
Separate drop from ampacity: A cable can have acceptable voltage drop and still be the wrong conductor for the breaker, insulation rating, termination temperature, conduit fill, or continuous server load.

Your home server rack hums along quietly, pulling only three hundred watts from the wall. And then the NAS restarts and the network camera on the other end of house flickers off. Perhaps your hardware is at fault, or maybe the problem are in the walls. This is a voltage drop.

Every foot of copper wire resist electricity. That resistance lowers the pressure by the time it get to your equipment. Too little pressure causes your sensitive electronics to overheat and shutdown. Plug in your distance and your load into the calculator and it do the math for you. Plan the circuit without guessing which coefficients is right.

Why Your Server Loses Power

To understand feeding a server rack you need to know about potential difference. Voltage can be thought of as equivalent of water pressure in a pipe. A wider pipe and a shorter distance to faucet result in higher pressure. The narrower the pipe, the longer its run, the lower pressure due to friction. To use electrical terms: Gauge of the wire is like pipe width, length of run is like distance, and amperage is like flow rate. Thicker wire = Less Resistance. Longer Runs = More Resistance. Simple tradeoff. Get it wrong and you’re running your servers on empty.

This is common with home lab builders. Size the circuit breaker based off the max current they need. As long as the wire doesn’t melt, it’s good, right? No! The wire may be able to withstand the heat without melting, yet the voltage loss from the wire might still drop below what the devices requires.

Three percent is considered acceptable branch circuit voltage drop by standards. This isn’t some hard-and-fast safety requirement. It’s a performance guideline. Your power supplies has to work harder to hold their output at a steady level when there is high voltage loss in the wires. They waste more energy and get hotter, but you might not realize it until the fan goes to full speed and starts screaming.

The amount of copper are incredibly important because thicker wires offers less resistance and help keep your voltage stable. One thing that the calculator asks for is power factor. That’s the measure of how well your servers’ power supplies convert electricity into actualy watts. Most moddern supplies use switching technology and are very efficient, pulling close to 95% efficiency. Cheaper adapters or older equipment lag behind. A lower power factor means more current draws, which translates in more voltage drop. If you don’t account for this variable, you may end up designing something that works great on paper but falls short when used in practice.

The page has a reference table of how various sizes of conductors resist current differrently. Even so, PoE runs on forty-eight volts. Much lower voltage than your typical home electrical system and even more unforgiving. Voltage drops are expressed as percentages of total volts. So if you lose a couple of volts on a one-twenty volt circuit, it’s barely a whisper. You’ll never know. But off a forty-eight volt PoE line, that’s more than four percent. That is enough to kick an access point into low-power mode or shut it down completely.

Cat6 vs. Cat5e: Why do we prefer the former for powered devices? Because the additional copper has an impact on signal stability that is measurable. Cat6: Why do we prefer the former for powered devices? Because the additional copper have an impact on signal stability that is measurable.

But also plan ahead. Denser servers. New drives spinning up. Maybe a GPU added for some machine learning experiment. Sizing your cables to match exactly what is required today leave no margin for growth. Add ten or fifteen percent buffer on the wattage input and you don’t have to worry about tomorrow’s upgrade breaking your power delivery. A thicker cable is cheap compared to the headache of rewiring everything later. You should of pulled it once, rather than twice.

The physics of wire are important when talking about reliable power. Resistance happens and you can’t cheat on that score. All you can do is work around it with higher voltage, a thicker conductor, or a shorter run. The first thing to check if your drive reboots or a light flickers is distance. Rarely is the issue with the device. It’s what happened to the electrons on their journey.
